Key Features

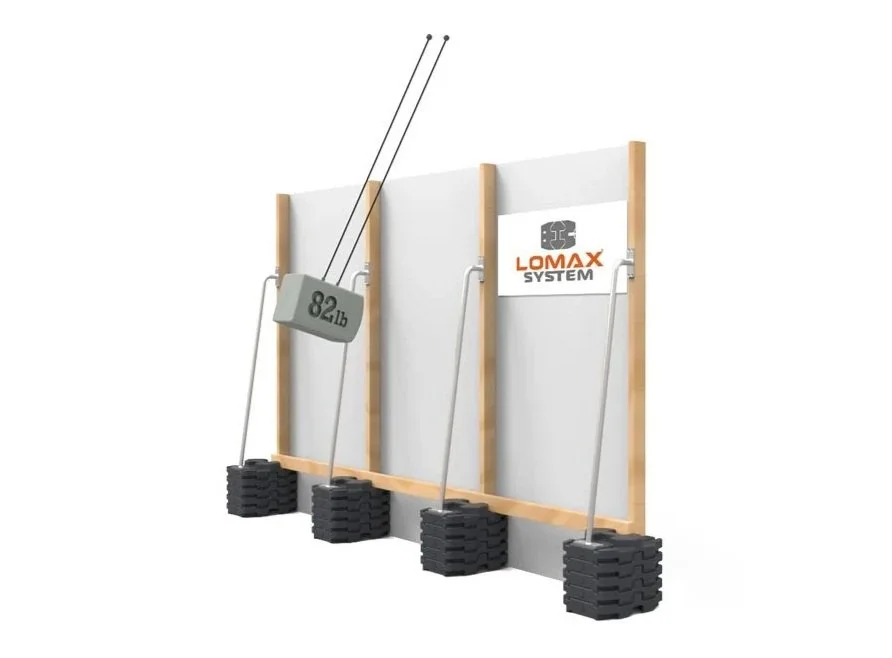

A weight training setup with four black weight stacks connected to vertical poles with ropes, a weight plate labeled 82 pounds hanging, and a sign that reads "LOMAX SYSTEM" on a white background.

Structurally Engineered & Certified System

  • Extensively impact and climb tested for safety and stability by multiple structural engineers

  • Impact tested from both front and rear of barricade

    Numerous configurations tested – Indoors and outdoors

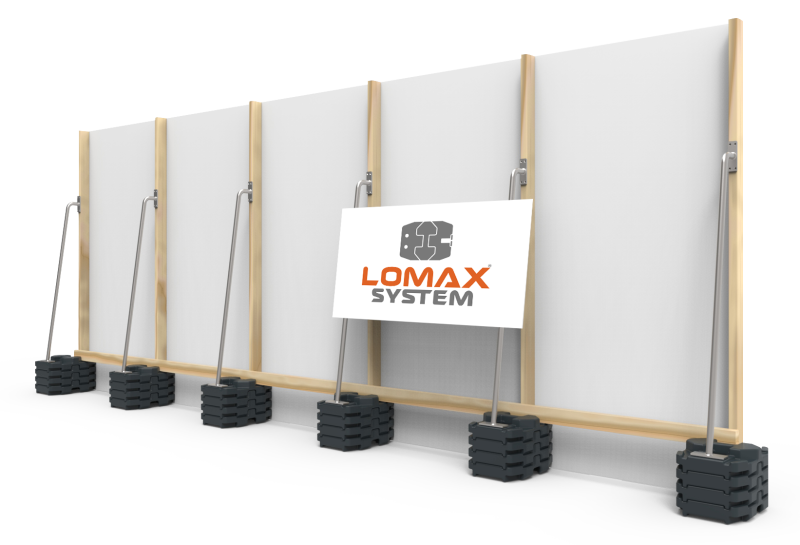

Display of wall framing with six set of foundations and a sign that reads 'LOMAX SYSTEM' with a logo.

Completely Freestanding System

  • Engineered to freestand up to 26ft indoors

  • Engineered to freestand up to 13ft outdoors

  • No bracing or ground fixings required

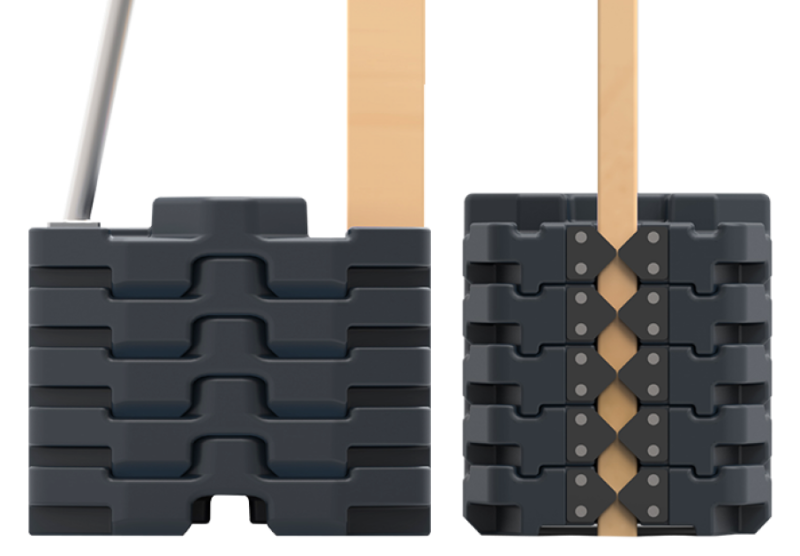

Stack of black plastic parts on a workbench with a wooden board and a metallic pipe.

Narrow Footprint System

  • Narrowest freestanding barricade solution available

  • Counterweights are only 18in deep

  • Maximize your working space behind the barricade

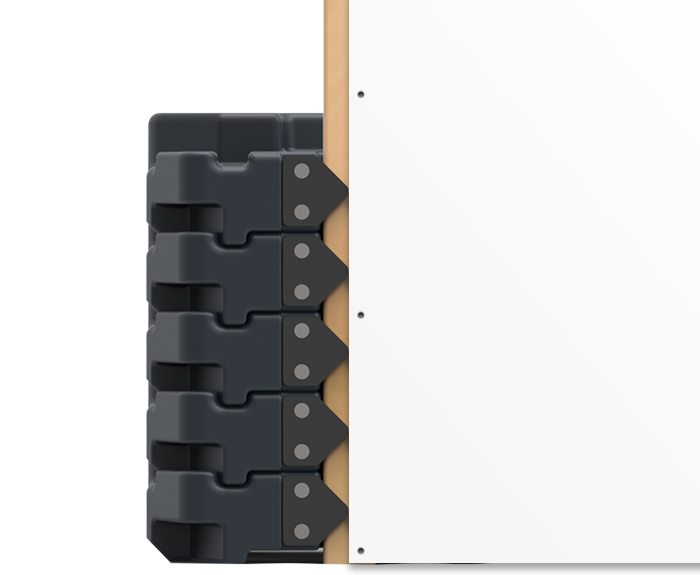

Close-up of five black vault-like latch locks attached to a white door.


Secure Counterweights by Design

  • Impossible to remove counterweights whist panels attached

  • Patented metal plates designed and integrated into counterweight

  • Ultimate safety by design – No need for additional anti-tamper locking tools

A gray adjustable measuring device with a vertical scale, attached to a set of black weights stacked at the bottom, used for height measurement.

Triangulating Support Post

  • Steel Post extends up from top of weights for maximum support

  • Clever design triangulates and strengthens the total system

  • Support post inserts into counterweights for optimum strength

Multiple indoor and outdoor configurations possible

  • Modular system to reuse again and again

  • Simple and intuitive build process

  • Structurally engineered for stability and safety

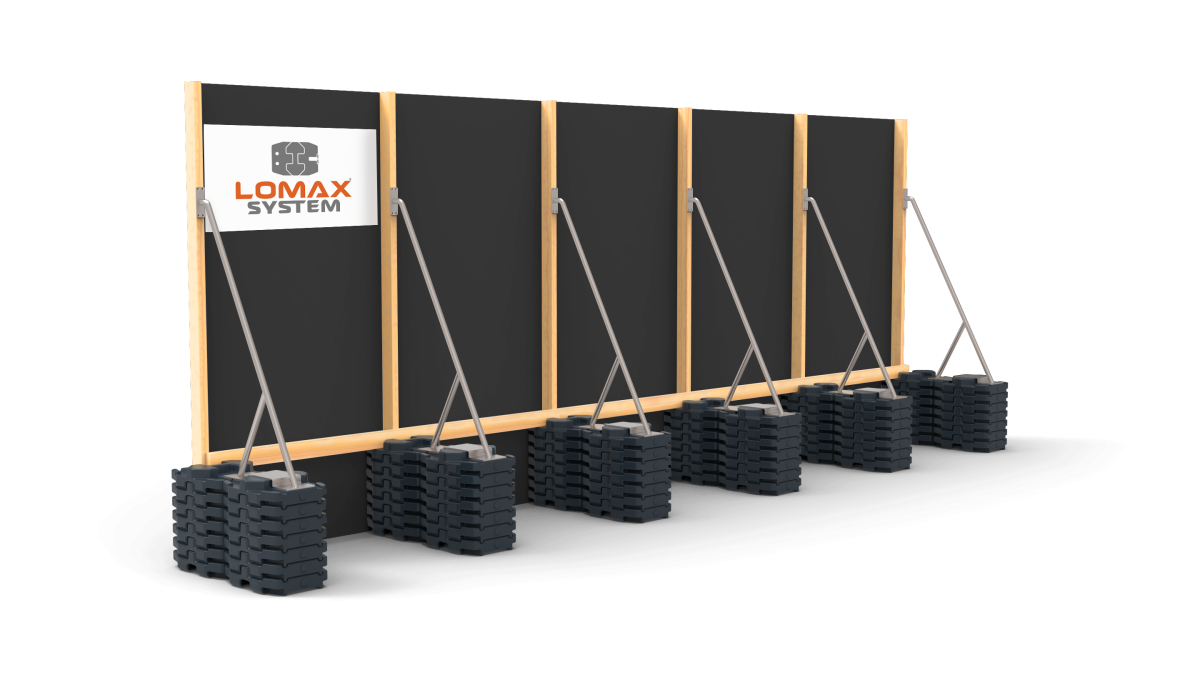

A display of portable black weight plates stacked in pairs, with wooden framing and black boards showcasing the logo 'LOMAX SYSTEM' for strength training equipment or gym setup.

‘Dual Function’ Counterweights

  • Clever Counterweight design

  • Can be rotated for both barricade and fencing configurations

  • Designed to integrate with various support posts

‘Stay Straight’ Crossbeam

  • Integrated Cross-beam to keep barricade straight long after installation

  • Purposefully designed feature to stop any lateral movement

  • Removes that unwelcome ‘post-build movement or snaking’

Stacked black weight plates with metal handles leaning against a wall,
The image shows two different compact, rectangular devices with screens displaying the LOMAX logo, likely sensors or controllers. Below, there is a large white fence with the LOMAX SYSTEM logo and an industrial metal fence with integrated electrical components or sensors, suggesting a security or automation system.
